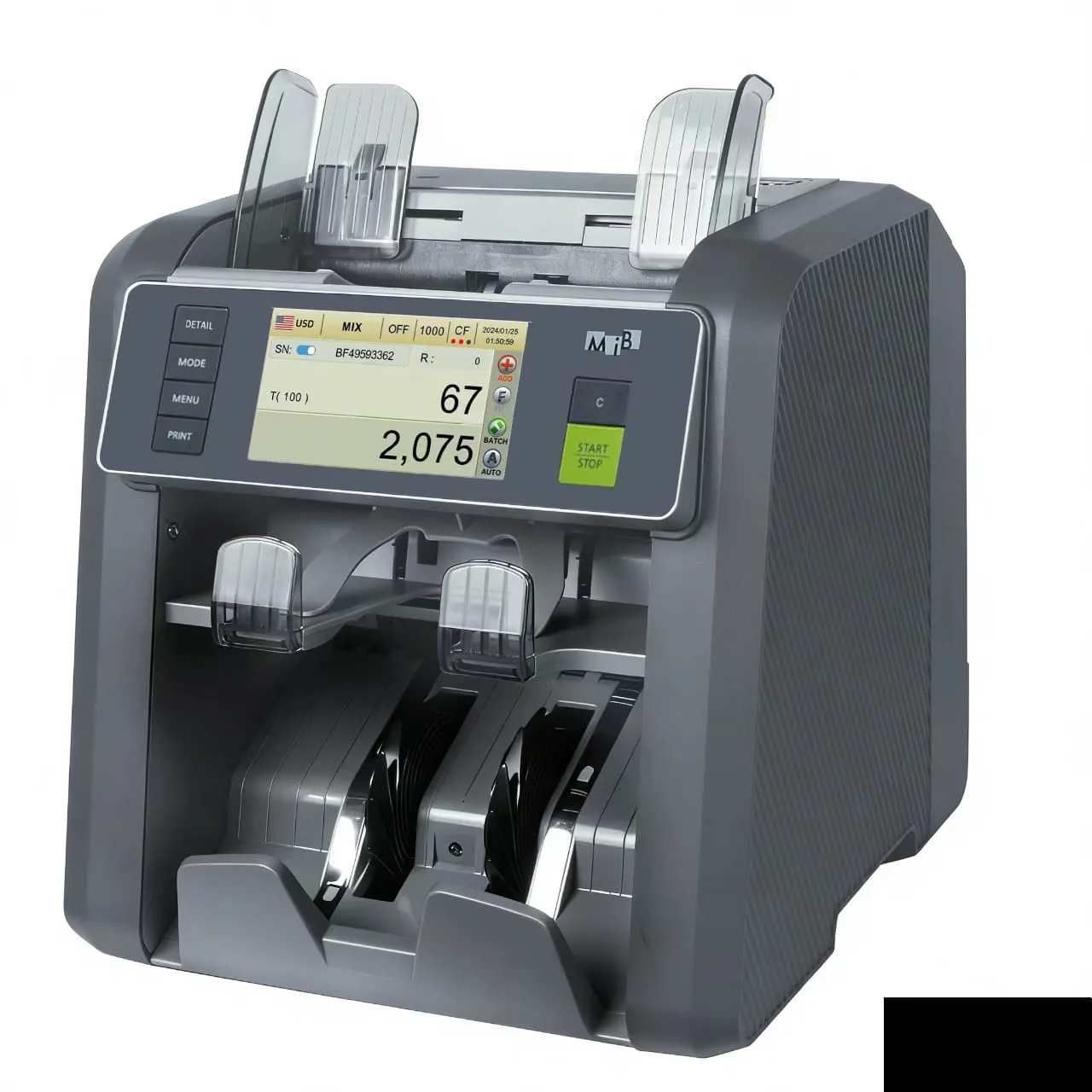

MIB-10D
The Most Reliable Dual CIS 2-Pocket Value Counter
Overview
MIB-10D is a 2-pocket value counter with Dual CIS.
A dedicated reject pocket separates suspect and unfit notes while it counts mixed denominations at up to 1,500 notes per minute.
Key Features
- Dual CIS full-image scanning
- 2 pockets (stacker + reject)
- Up to 1,500 notes per minute (Count mode)
- 4.5" TFT color touch screen
- Mix, Single, Face, Orient, Count, SNC modes
- Counterfeit detection: UV, IR, MT, MG
- Multi & Auto currency + up to 20 currencies
Specifications
| Speed | 800 / 1,000 / 1,200 / 1,500 NPM (Count mode) |
| Pockets | 1+1 (stacker + reject) |
| Capacity | 500 notes hopper / 200 notes stacker / 100 notes reject |
| Display | 4.5" TFT Touch Screen |
| Modes | Mix, Single, Face, Orient, Count, SNC |
| Sensors | Dual CIS, UV, IR, MT, MG |
| Currencies | Multi & Auto + up to 20 currencies |
| Interface | RS-232C, RJ-11, 2x USB |
| Power Supply | AC 100~240V ±10% 50/60Hz |
| Dimensions (WxDxH) | 275 x 245 x 288 mm, 12 kg |
Details
Dual CIS with Reject Pocket
MIB-10D pairs Dual CIS full-image scanning with a dedicated reject pocket. Suspect or unfit notes are automatically diverted to the reject pocket, so counting continues without interruption.
Serial Number Comparison (SNC)
In SNC mode, MIB-10D reads and compares the serial numbers printed on a banknote to detect composite notes assembled from parts of genuine banknotes — a threat that conventional counterfeit detection cannot catch.
